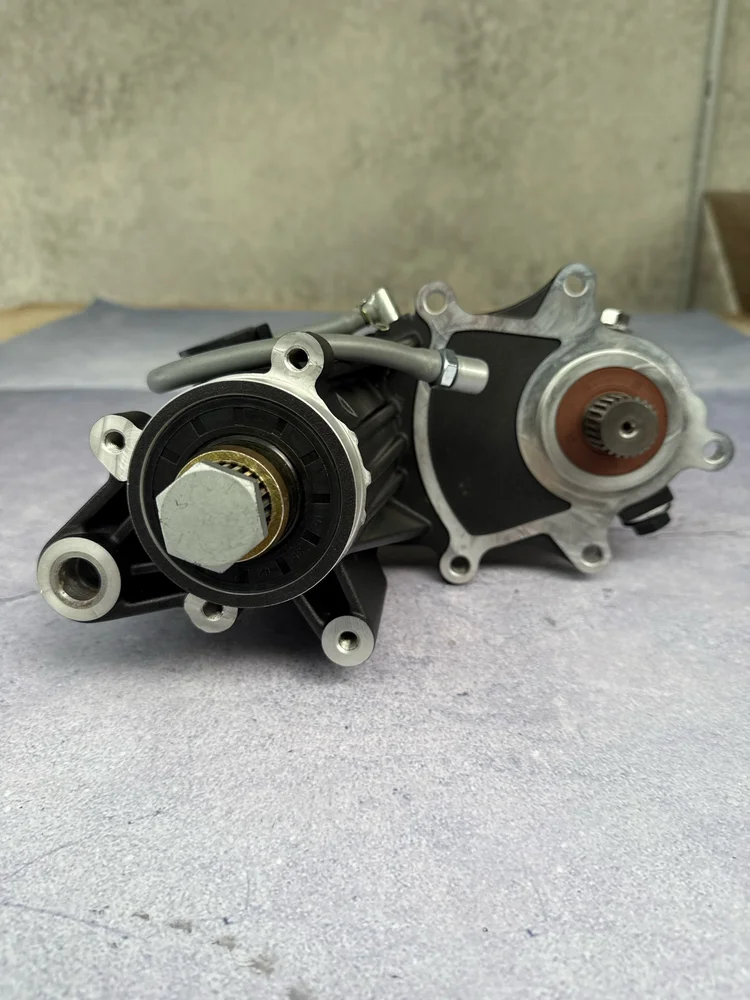

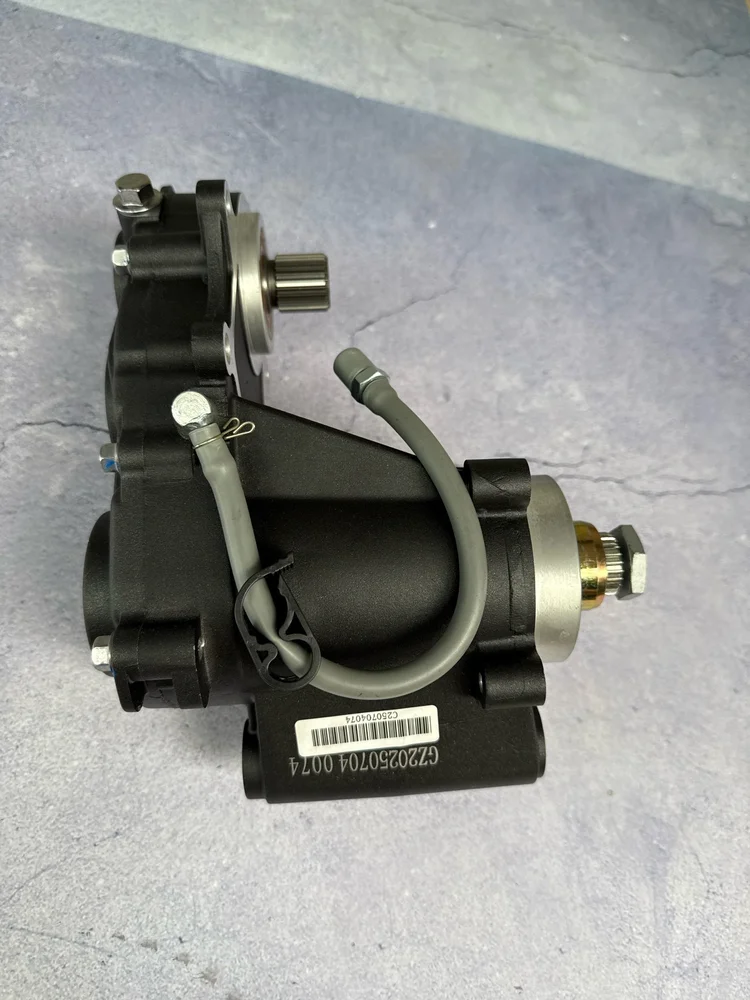

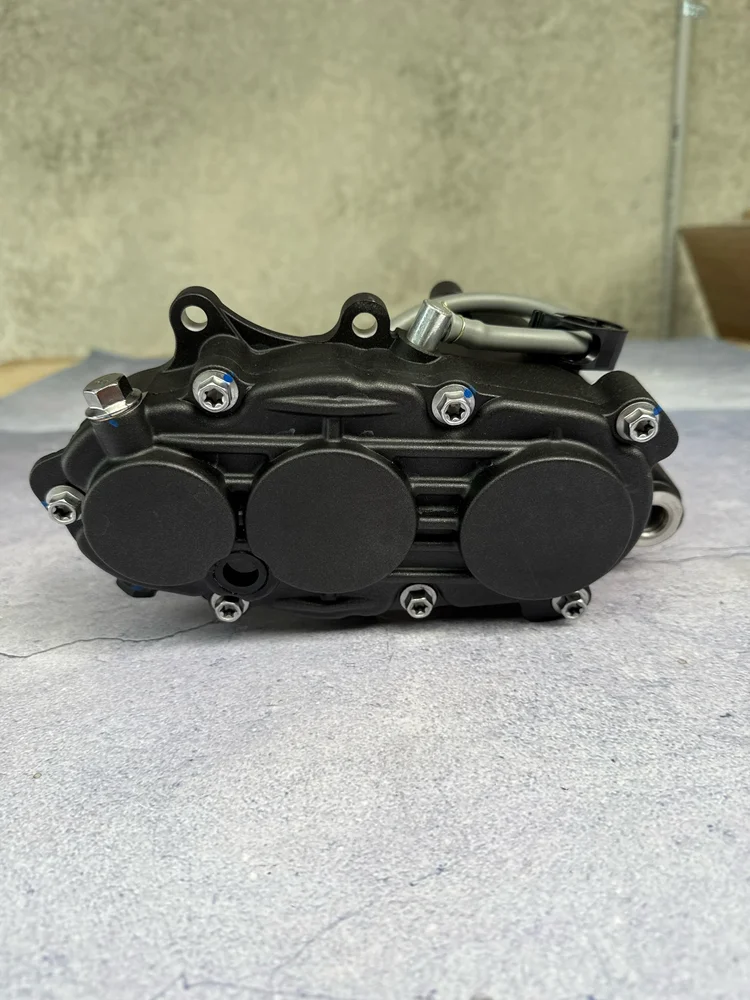

Talaria Komodo Gearbox

Talaria Komodo Gearbox Australia.

The Talaria Komodo Gearbox is a key component in the Komodo TL6000’s high-performance drivetrain, acting as the primary transmission between the mid-mounted electric motor and the final chain drive. Designed for serious off-road use, this gearbox helps convert the motor’s high-RPM power into controlled, usable torque at the rear wheel, supporting the Komodo’s reputation as a genuine electric alternative to 250–450 cc petrol dirt bikes in Australia.

For Australian riders running their Komodo on private property, trails and off-road tracks, the gearbox plays a vital role in acceleration, top-speed potential and overall rideability. Unlike simpler direct-drive or belt-only setups found on smaller e-motos, the Komodo uses a dedicated gearbox primary transmission combined with a 520 chain final drive, creating a robust and tunable system for demanding conditions.talaria.us+3

Transmission Layout and Design.

The Talaria Komodo’s transmission system is split into two stages:

• Primary Transmission: Gearbox

• Drive Transmission: 520 chain with front and rear sprocketstalaria.us+4

This layout is clearly listed in official Komodo specifications, where the primary transmission is identified as a gearbox, followed by a 520 chain to the rear wheel. The front sprocket is typically offered in 14T or 15T options, while the rear sprocket is commonly 50T or 53T, allowing riders to fine-tune gearing for acceleration or top speed.talaria.us+5

The mid-mounted DC permanent magnet synchronous motor (PMSM) produces around 8.6 kW rated power and up to 32 kW peak, with peak motor torque in the region of 90 Nm. Through the gearbox reduction and final chain drive, this is multiplied to approximately 754 Nm at the rear wheel, giving the Komodo its explosive acceleration and strong hill-climbing ability.talaria.us+3

The gearbox itself is air-cooled and integrated into the motor assembly, forming a compact mid-drive unit that keeps the centre of gravity low and central. This design improves handling on technical terrain, jumps and high-speed sections by reducing unsprung mass and concentrating weight near the bike’s core.

Performance Benefits for Off-Road Riding.

The Komodo gearbox delivers several advantages for Australian off-road riders:

• Controlled power delivery: The gearbox reduction allows the motor to operate in an efficient RPM range while providing smooth, predictable torque to the rear wheel. This is especially useful on loose surfaces, steep climbs and technical singletrack where sudden power spikes can break traction.atvwholesaleoutlet+2

• Strong acceleration: Combined with the 520 chain final drive, the gearbox helps achieve rapid acceleration figures often quoted around 0–30 mph in under 2 seconds and 0–60 mph in roughly 4.5 seconds. This makes the Komodo highly responsive out of corners and on short straights.atvwholesaleoutlet+1

• Adjustable gearing: With 14/15T front and 50/53T rear sprocket options, riders can tailor the Komodo to their terrain and style. A larger rear sprocket or smaller front sprocket favours acceleration and low-end punch, while a smaller rear or larger front sprocket can raise top-speed potential at the expense of some low-end grunt.talaria.us+5

• Durability under load: The gearbox and 520 chain setup is designed to handle the high torque loads generated by the 32 kW peak motor. This is important for repeated hard launches, big jumps and aggressive riding where weaker transmissions might fail or wear quickly.atvwholesaleoutlet+2

Maintenance and Reliability Considerations.

Like any high-performance transmission, the Komodo gearbox benefits from regular inspection and proper maintenance:

• Chain care: The 520 final chain should be kept clean, correctly tensioned and well lubricated according to Talaria’s recommendations. A worn or poorly adjusted chain increases load on the gearbox and sprockets, potentially reducing component life.atvwholesaleoutlet+2

• Sprocket wear: Front and rear sprockets should be inspected for hooked or worn teeth, especially if the chain has been run loose or dirty. Replacing worn sprockets and chains as a set helps protect the gearbox output and maintain smooth power delivery.talaria.us+3

• Gearbox integrity: While the gearbox is sealed and air-cooled, riders should check for oil leaks, unusual noise, excessive heat or changes in shifting feel (if applicable to the specific variant). Any signs of damage or abnormal behaviour should be assessed by a qualified Talaria technician.atvwholesaleoutlet+1

• Riding style: Hard launches, constant full-throttle use and frequent high-load situations increase stress on the entire drivetrain. Moderating riding style, using appropriate power modes (Eco, Sport, Hyper) and allowing cooling periods during intense sessions can help extend gearbox and motor life.talaria.us+3
