Talaria Sting 6000W Controller.
Talaria sting 6000w controller — known as the MX3 or TL3000 — is one of the most popular lightweight electric dirt bikes on the market, and its 6000W peak power is a big part of the appeal. But that power doesn’t come from the motor alone. The Talaria Sting 6000W controller is the electronic brain that manages the entire 60-volt system, converting battery energy into smooth, controllable torque. Whether you’re buying your first Sting, maintaining one, or planning an upgrade, the controller is the component worth understanding.
What Is the Talaria Sting 6000W Controller?
The Sting’s controller is a field-oriented control (FOC) unit that regulates power flow from the 60V battery to the permanent-magnet synchronous motor (PMSM). It’s the component that lets the bike’s 3000W-rated motor surge to a 6000W peak, delivering up to 34Nm of motor torque and roughly 284Nm at the rear wheel.talariayard+1

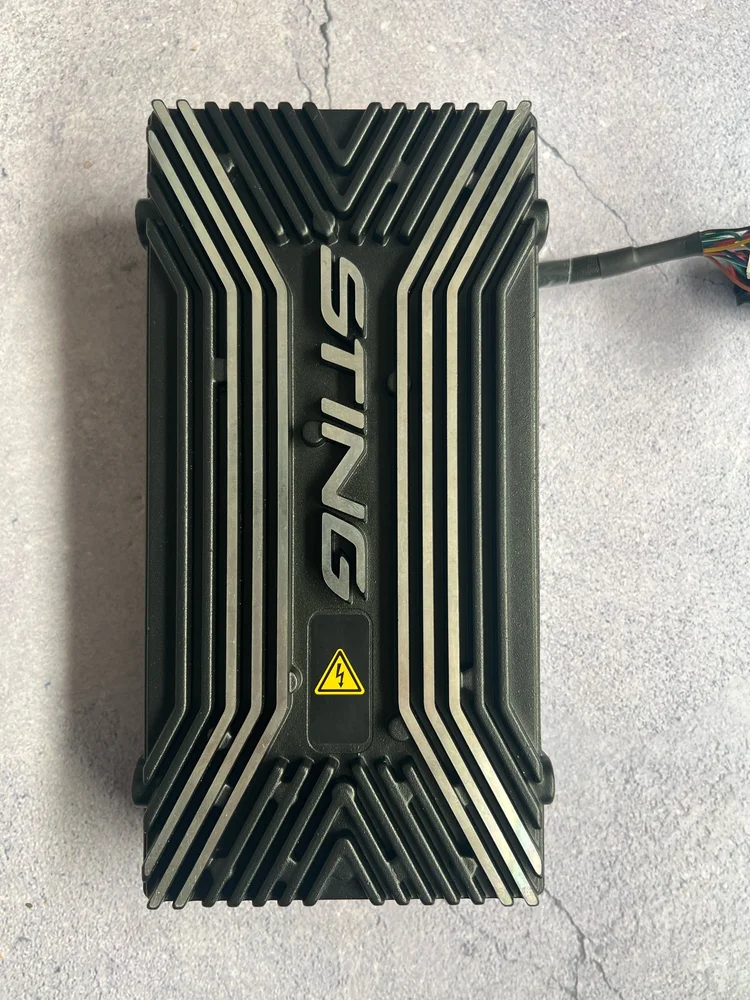

The factory controller is a compact unit weighing about 1.6kg and measuring 240mm × 110mm × 50mm. It runs at up to 98.5% peak efficiency, handles a traveling-wave current of 85A, and is rated for temperatures up to 100°C — all housed in an IP67 water-resistant enclosure.talariayard
Power Delivery and Ride Modes.
The controller is what makes the Sting feel responsive. It continuously computes throttle input, torque delivery, and regenerative braking, giving riders the smooth, predictable power that the MX3 is known for. It also manages the bike’s ride modes — Eco for conserving battery, and Sport for maximum acceleration — so you can switch between efficient commuting and spirited trail riding at the touch of a button.talariayard+1
With the 60V/38.4Ah LG lithium battery, the Sting delivers a top speed of around 47 mph and a range of roughly 43 miles at 25 mph, depending on riding conditions.talaria
Replacement and Compatibility.
Like any electronic component, the Sting’s controller can fail over time — often flagged by error codes on the display — and it’s one of the most common parts to replace on a used MX3. OEM replacement controllers are widely available, and most are designed as direct swaps that plug into the standard wiring loom.go-off-roadbarnsley+2
Because the controller governs everything from throttle to safety systems, replacing it with a genuine Talaria unit ensures all factory features — kickstand sensor, crash sensor, power mode button, and brake switch — keep working as intended.webshop.torpmotors
Upgrading for More Power.
For riders who want more than the stock 6000W, the controller is the gateway to performance. Aftermarket controllers like the Torp TC1000 and the EBMX X-9000 are popular upgrades for the Sting platform. These units use field-oriented control with advanced tuning via a mobile app, and can safely push an OEM Talaria motor to around 12kW — roughly double the stock peak — with the right battery.webshop.torpmotors+2
The EBMX X-9000, for example, supports 48V–120V input, up to 500A battery current, and 1000A continuous phase current, with an IP67 rating and VESC-based firmware. On a stock Talaria battery it can run around 8.5kW safely on MX3 models, with more available on an upgraded battery.gritshift
Final Thoughts.
The Talaria Sting 6000W controller is the component that ties the whole MX3 together — delivering the 60V power, the 6000W peak, the responsive ride modes, and the regenerative braking that make the Sting such a capable and fun electric dirt bike. Whether you’re replacing a faulty unit or chasing more power, understanding the controller is the key to getting the most from your bike.
